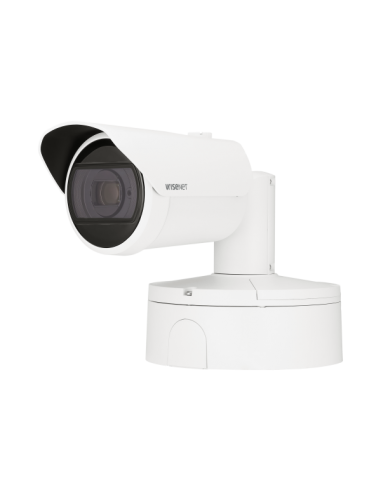

XNO-6123R: IR 90 m. WDR 150dB. Zoom motorizado 5.2 - 62.4mm

Referencia XNO-6123R

Resolución máxima de 2MP
Color: 0.01 Lux (F1.4, 1/30 seg, 30IRE), 0 Lux (LED IR encendido)
Hasta 120 fps (H.265/H.264)
Alcance máximo de visión IR: WiseIR 50 m (164.04 pies)
Visión día y noche (ICR), extremeWDR (150 dB)
WiseNR II (basado en motor de IA), WiseStream III (basado en motor de IA)
Estabilización digital de imagen (DIS) con sensor giroscópico incorporado
Eventos analíticos basados en motor de IA (NPU): detección de objetos (persona/rostro/vehículo – coche, camión, autobús, bicicleta, motocicleta/matrícula), IVA (línea/área virtual, entrada/salida, merodeo, dirección, intrusión)
Eventos analíticos: detección de desenfoque, detección de movimiento, sabotaje, detección de niebla, detección de audio, clasificación de sonidos, detección de golpes, aparición/desaparición

Descripción

ESPECIFICACIONES TÉCNICAS

Especificaciones técnicas

Video
Imaging Device																																																																1/2.8" CMOS
Resolution																																																																1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate																																																																H.265/H.264: Max. 120fps/100fps(60Hz/50Hz)(WDR off) Max. 60fps/50fps(60Hz/50Hz)(WDR on) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination																																																																Color: 0.03Lux(F1.6, 1/30sec, 30IRE) B/W : 0.003Lux(F1.6, 1/30sec, 30IRE), 0Lux(IR LED on), 30/25fps Color: 0.06Lux(F1.6, 1/60sec, 30IRE) B/W : 0.006Lux(F1.6, 1/60sec, 30IRE), 0Lux(IR LED on), 60/50fps Color: 0.12Lux(F1.6, 1/120sec, 30IRE) B/W : 0.012Lux(F1.6, 1/120sec, 30IRE), 0Lux(IR LED on), 120/100fps
Video Out																																																																CVBS : 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P), for installation USB : Micro USB type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio)																																																																5.2~62.4mm(12x) zoom (digital 32x, total 384x zoom)
Max. Aperture Ratio																																																																F1.6(Wide) - F3.0(Tele)
Angular Field of View																																																																H: 54.58˚(Wide)~5.30˚(Tele) V: 32.19˚(Wide)~3.00˚(Tele)
Min. Object Distance																																																																1.5m(4.92ft)
Focus Control																																																																Oneshot AF, Focus save
Lens Type																																																																DC auto iris
Pan / Tilt / Rotate
Sequence																																																																Preset(300ea)
Operational
Camera Title																																																																Displayed up to 85 characters
Day & Night																																																																Auto(ICR)/Color/BW/Schedule
Backlight Compensation																																																																BLC, HLC, WDR, SSDR
Wide Dynamic Range																																																																extremeWDR(150dB)
Digital Noise Reduction																																																																WiseNRⅡ(Based on AI engine), SSNRⅤ
Digital Image Stabilization																																																																Support(built-in gyro sensor)
Defog																																																																Support
Motion Detection																																																																8ea, 8point Polygonal zones
Privacy Masking																																																																32ea, 4point Quadrangle zones - Color : Gray, Green, Red, Blue, Black, White - Mosaic
Gain Control																																																																Support
White Balance																																																																ATW / Narrow ATW / AWC / Manual / Indoor / Outdoor
LDC																																																																Support (Fill/stretch mode)
Electronic Shutter Speed																																																																Minimum / Maximum / Anti flicker (2~1/12,000sec) prefer shutter control(Based on AI engine)
Video Rotation																																																																Flip, Mirror, Hallway view(90°/270°)
Analytics																																																																Classified object type : Person/Face/Vehicle/License plate Attributes : Vehicle(Type:car/bus/truck/motorcycle/bicycle) Analytics events based on AI engine - Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit) Analytics events - Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear) * Some of the video analytics only works with people and vehicle detection
Alarm I/O																																																																2 configurable I/O ports, DC 12V output(Max. 50mA)
Alarm Triggers																																																																Analytics, Network disconnect, Alarm input, App event, Time schedule
Alarm Events																																																																When alarm trigger occurred - File upload(image) : e-mail/FTP - Notification : e-mail - Recording : SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) - Audio clip playback
Audio In																																																																Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out																																																																Line out, Max.output level: 1Vrms
IR Viewable Length																																																																WiseIR 90m(295.28ft)
Network
Ethernet																																																																Metal shielded RJ-45(10/100/1000BASE-T)
Video Compression																																																																H.265/H.264: Main/High, MJPEG
Audio Compression																																																																G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
Smart Codec																																																																Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(Based on AI engine)
Bitrate Control																																																																H.264/H.265: CBR or VBR MJPEG: VBR
Streaming																																																																Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
Protocol																																																																IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
Security																																																																TPM 2.0 (FIPS 140-2 level 2) HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) Device Certificate(Hanwha Techwin Root CA, pre-installed) Secure by default certificate Secure OS/Boot/Storage, Verify firmware forgery
Application Programming Interface																																																																ONVIF Profile S/G/T/M SUNAPI(HTTP API) Wisenet open platform
General
Webpage Language																																																																English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian
Edge Storage																																																																Micro SD/SDHC/SDXC 2slot Max. 1TB (512GB * 2)
Memory																																																																2GB RAM, 512MB Flash
Environmental & Electrical
Operating Temperature / Humidity																																																																-40°C~+60°C(-40°F ~ +140°F) / Less than 95% RH(Non-condensing) * Start up should be done at above -30°C Maximum Temperature based on NEMA-TS 2(2.2.7) : +74°C(+165°F) Humidity control /w GORE vent
Storage Temperature / Humidity																																																																-50°C~+60°C (-58°F~+140°F) / Less than 95% RH(Non-condensing)
Certification																																																																IP66/67, IK10, NEMA4X, NEMA-TS 2(2.2.8, 2.2.9)
Input Voltage																																																																PoE+(IEEE802.3at, Class4), 12VDC
Power Consumption																																																																PoE+: Max 19.5W, typical 15.5W 12VDC: Max 16.5W, typical 13.1W Power redundancy failover
Mechanical
Color / Material																																																																White / Aluminum Hard-coated window
RAL Code																																																																RAL9003
Product Dimensions / Weight																																																																Ø93.4x298.4mm(3.68"x11.75") / 2300g(5.07 lb)
Compatible Conduit hole / Gangbox																																																																3/4" (M25) single, double, 4" octagon, 4" square
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF)																																																																Wide: 74.4m(244.19ft) / Tele: 829.7m(2721.97ft)
Observe (63PPM/ 19PPF)																																																																Wide: 29.8m(97.68ft) / Tele: 331.9m(1088.79ft)
Recognize (125PPM/ 38PPF)																																																																Wide: 14.9m(48.84ft) / Tele: 165.9m(544.39ft)
Identify (250PPM/ 76PPF)																																																																Wide: 7.4m(24.42ft) / Tele: 83.0m(272.20ft)
