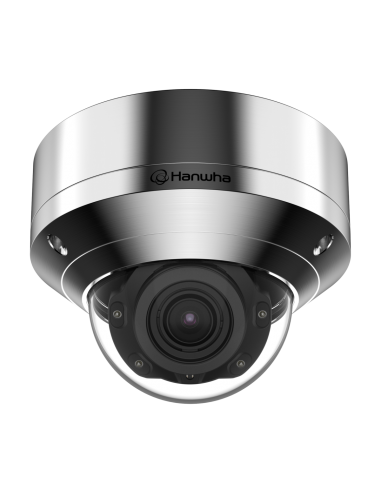

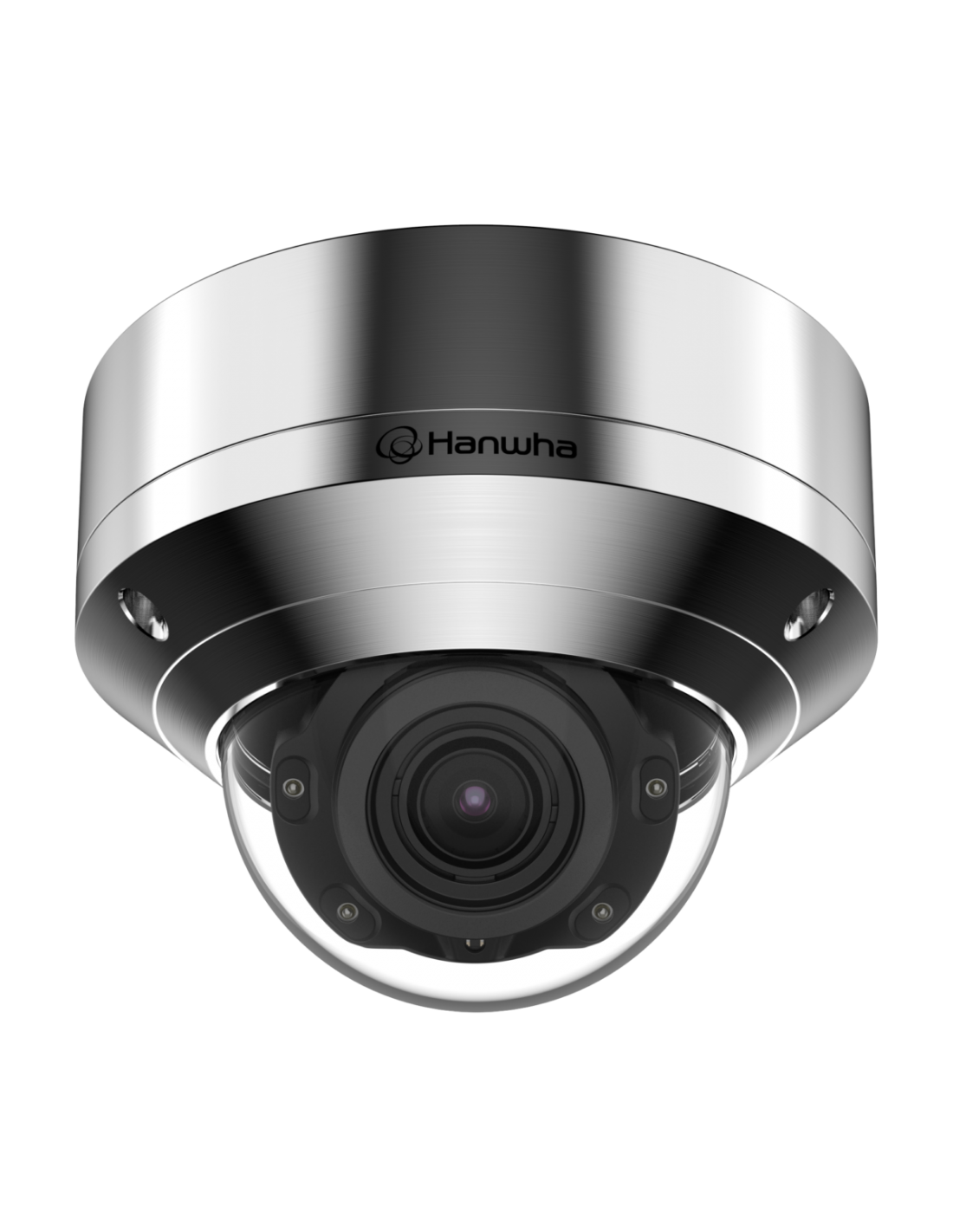

XNV-8080RSA: IR 50 m. WDR 120dB. Zoom motorizado 3.9 - 9.4mm

XNV-8080RSA

• Max. 5Megapixel (2560x1920) resolution

• 3.9 ~ 9.4mm (2.4x) motorized varifocal lens

• Max. 30fps@all resolutions (H.265 / H.264)

• H.265, H.264, MJPEG codec supported, Multiple streaming

• Day & Night (ICR), WDR (120dB), Defog

• Loitering, Directional detection, Tampering, Audio detection, Digital auto tracking, Fog detection, Sound classification

• Motion detection, Handover

• SD/SDHC/SDXC memory 2slots (Max. 512GB)

• Hallway view, WiseStream II support

• IR viewable length 50m

• IP66, IP6K9K, IK10+, NEMA4X

• LDC, PoE support

ESPECIFICACIONES TÉCNICAS

Especificaciones técnicas
Video
Imaging Device1/1.8” CMOS
Resolution2560x1920, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. FramerateH.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. IlluminationColor: 0.07Lux(F1.3, 1/30sec)
BW: 0Lux(IR LED on)
Video OutCVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
USB: Micro USB Type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio)3.9~9.4mm(2.4x) motorized varifocal
Max. Aperture RatioF1.3(Wide) ~ F2.4(Tele)
Angular Field of ViewH: 93°(Wide)~38°(Tele)
V: 68°(Wide)~29°(Tele)
D: 120°(Wide)~48°(Tele)
Min. Object Distance0.5m(1.64ft)
Focus ControlSimple focus
Lens TypeDC Auto Iris, P iris
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range0˚~354˚ / 0˚~67˚ / 0˚~355˚
Operational
Camera TitleDisplayed up to 85 characters
Day & NightAuto(ICR)
Backlight CompensationBLC, HLC, WDR
Wide Dynamic Range120dB
Digital Noise ReductionSSNRⅤ
Digital Image StabilizationSupport
DefogSupport
Motion Detection8ea, 8point Polygonal zones
Privacy Masking32ea, 4point polygonal zones
- Color : Gray, Green, Red, Blue, Black, White
- Mosaic
Gain ControlLow / Middle / High
White BalanceATW / AWC / Manual / Indoor / Outdoor
LDCSupport
Electronic Shutter SpeedMinimum / Maximum / Anti flicker (2~1/12,000sec)
Video RotationFlip, Mirror, Hallway view(90˚/270˚)
AnalyticsDefocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification
Alarm I/OInput 1ea / Output 1ea
Alarm TriggersAnalytics, Network disconnect, Alarm input
Alarm EventsFile upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
Handover
Audio InSelectable(mic in/line in)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio OutLine out, Max.output level: 1Vrms
IR Viewable Length50m(164.04ft)
Network
EthernetRJ-45(10/100BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Audio CompressionG.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Smart CodecManual(5ea area), WiseStreamⅡ
Bitrate ControlH.264/H.265: CBR or VBR
MJPEG: VBR
StreamingUnicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
SecurityHTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access Log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming InterfaceONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platform
General
Webpage LanguageEnglish, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian
Edge StorageMicro SD/SDHC/SDXC 2slot 512GB
Memory1024MB RAM, 512MB Flash
Environmental & Electrical
Operating Temperature / Humidity-40°C ~ +55°C(-40°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity-50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
CertificationIP66, IP6K9K, NEMA4X, IK10+
Input VoltagePoE(IEEE802.3af), 12VDC, 24VAC
Power ConsumptionPoE: Max 12.95W
12VDC: Max 11.5W
24VAC: Max 14W
Mechanical
Color / MaterialSilver / Stainless(SUS316L)
Product Dimensions / WeightØ162x120.5mm(Ø6.38x4.74") / 2.8kg(6.17lb)
Certifications & Standards
EMCFCC 47 CFR 15 Subpart B Class A
ICES-3(A)/NMB-3(A)
CE/UKCA
- EN 55032 Class A, EN 50130-4
VCCI CISPR 32 Class A
RCM AS/NZS CISPR 32 Class A
KS C 9832 Class A , KS C 9835
SafetyUL 60950-1, CAN/CSA C22.2 NO. 60950-1
IEC/EN 62471
EnvironmentIEC/EN 63000
IEC/EN 60529 IP66, ISO 20653 IP6K9K, IEC/EN 62262 IK10+
NEMA 250 type 4X
NSF/ANSI 169-2016: Special purpose food equipment and devices
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF)Wide: 48.6m(159.41ft) / Tele: 148.7m(487.85ft)
Observe (63PPM/ 19PPF)Wide: 19.4m(63.76ft) / Tele: 59.5m(195.14ft)
Recognize (125PPM/ 38PPF)Wide: 9.7m(31.88ft) / Tele: 29.7m(97.57ft)
Identify (250PPM/ 76PPF)Wide: 4.9m(15.94ft) / Tele: 14.9m(48.78ft)
