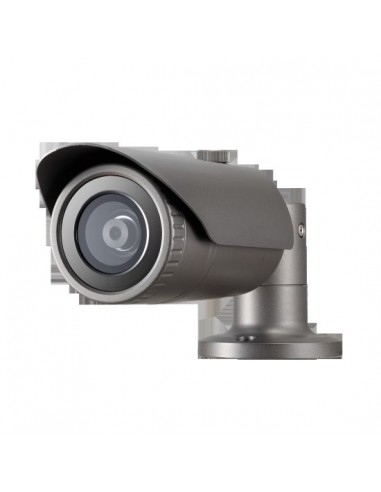

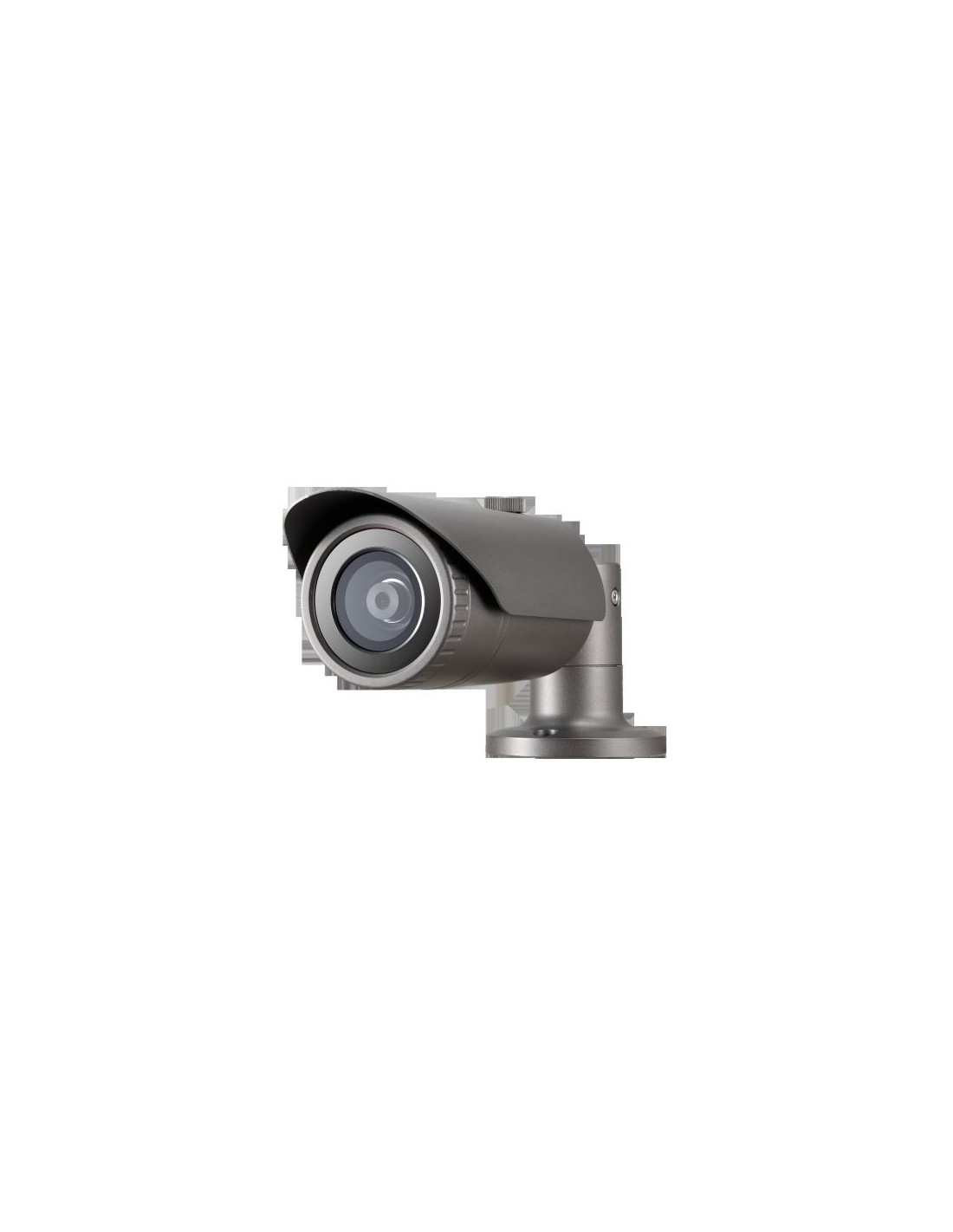

QNO-6022R1: IR 25 m. WDR 120dB. Óptica fija 4mm (Sin Audio)

Referencia QNO-6022R1

Resolución máx. de 2 megapíxeles (1920 x 1080)
0,1 lux (Color), 0 Lux (B/N, LED IR encendido)
Lente fija de 2,8 mm / 4 mm / 6 mm
Máx. 30 ips a 2 MP en todas las resoluciones (H.265 / H.264)
Compatible con los códecs H.265, H.264 y MJPEG, y flujos de datos múltiples
Detección de movimiento, manipulación y detección de desenfoque
Visualización pasillo (90˚/270˚), admite LDC
Ranura para tarjetas de memoria SD, SDHC y SDXC (máx. 128 GB)
Longitud visible IR 20 m / 25 m / 30 m
IP66, IK10, PoE y 12 VCC

Descripción

ESPECIFICACIONES TÉCNICAS

Especificaciones técnicas

Video
Imaging Device																																																																1/2.8" 2MP CMOS
Resolution																																																																1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
Max. Framerate																																																																H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz)
Min. Illumination																																																																Color: 0.03Lux(F1.6, 1/30sec) BW: 0Lux(IR LED on)
Video Out																																																																CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
Lens
Focal Length (Zoom Ratio)																																																																4.0mm fixed focal
Max. Aperture Ratio																																																																F1.6
Angular Field of View																																																																H: 87.6 / V: 46.4° / D: 104.5°
Min. Object Distance																																																																0.5m (1.64ft)
Focus Control																																																																Fixed
Operational
Camera Title																																																																Displayed up to 85 characters
Day & Night																																																																Auto(ICR)
Backlight Compensation																																																																BLC, WDR, SSDR
Wide Dynamic Range																																																																120dB
Digital Noise Reduction																																																																SSNR
Motion Detection																																																																4ea, polygonal zones
Privacy Masking																																																																6ea, rectangular zones
Gain Control																																																																Low / Middle / High
White Balance																																																																ATW / AWC / Manual / Indoor / Outdoor
LDC																																																																Support
Electronic Shutter Speed																																																																Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
Video Rotation																																																																Flip, Mirror, Hallway view(90˚/270˚)
Analytics																																																																Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
Alarm I/O																																																																Input 1ea / Output 1ea
Alarm Triggers																																																																Analytics, Network disconnect, Alarm input
Alarm Events																																																																File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output
IR Viewable Length																																																																25m(82.02ft)
Network
Ethernet																																																																RJ-45(10/100BASE-T)
Video Compression																																																																H.265/H.264: Main/High, MJPEG
Smart Codec																																																																WiseStreamⅡ
Bitrate Control																																																																H.264/H.265: CBR or VBR MJPEG: VBR
Streaming																																																																Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles)
Protocol																																																																IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
Security																																																																HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface																																																																ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
General
Webpage Language																																																																English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch
Edge Storage																																																																Micro SD/SDHC/SDXC 1slot 128GB
Memory																																																																512MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity																																																																-30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -20°C
Storage Temperature / Humidity																																																																-30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH
Certification																																																																IP66, IK10
Input Voltage																																																																PoE(IEEE802.3af, Class3), 12VDC
Power Consumption																																																																PoE: Max 7.00W, typical 5.20W 12VDC: Max 6.10W, typical 4.50W
Mechanical
Color / Material																																																																Dark grey / Aluminum
Product Dimensions / Weight																																																																Ø70.0x246.0mm(Ø2.76x9.69"), 700g(1.54 Ib)
Compatible Conduit hole / Gangbox																																																																Single, Double, 4" Octagon
Backbox																																																																SBO-100B1
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF)																																																																40.0m(131.36ft)
Observe (63PPM/ 19PPF)																																																																16.0m(52.54ft)
Recognize (125PPM/ 38PPF)																																																																8.0m(26.27ft)
Identify (250PPM/ 76PPF)																																																																4.0m(13.14ft)
