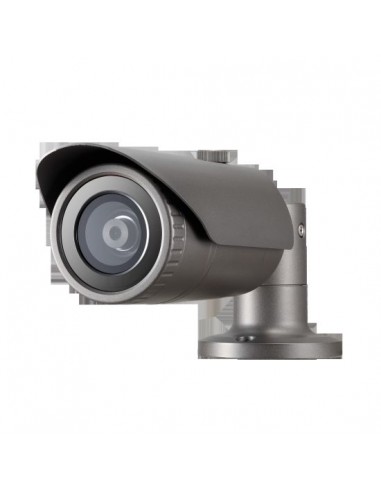

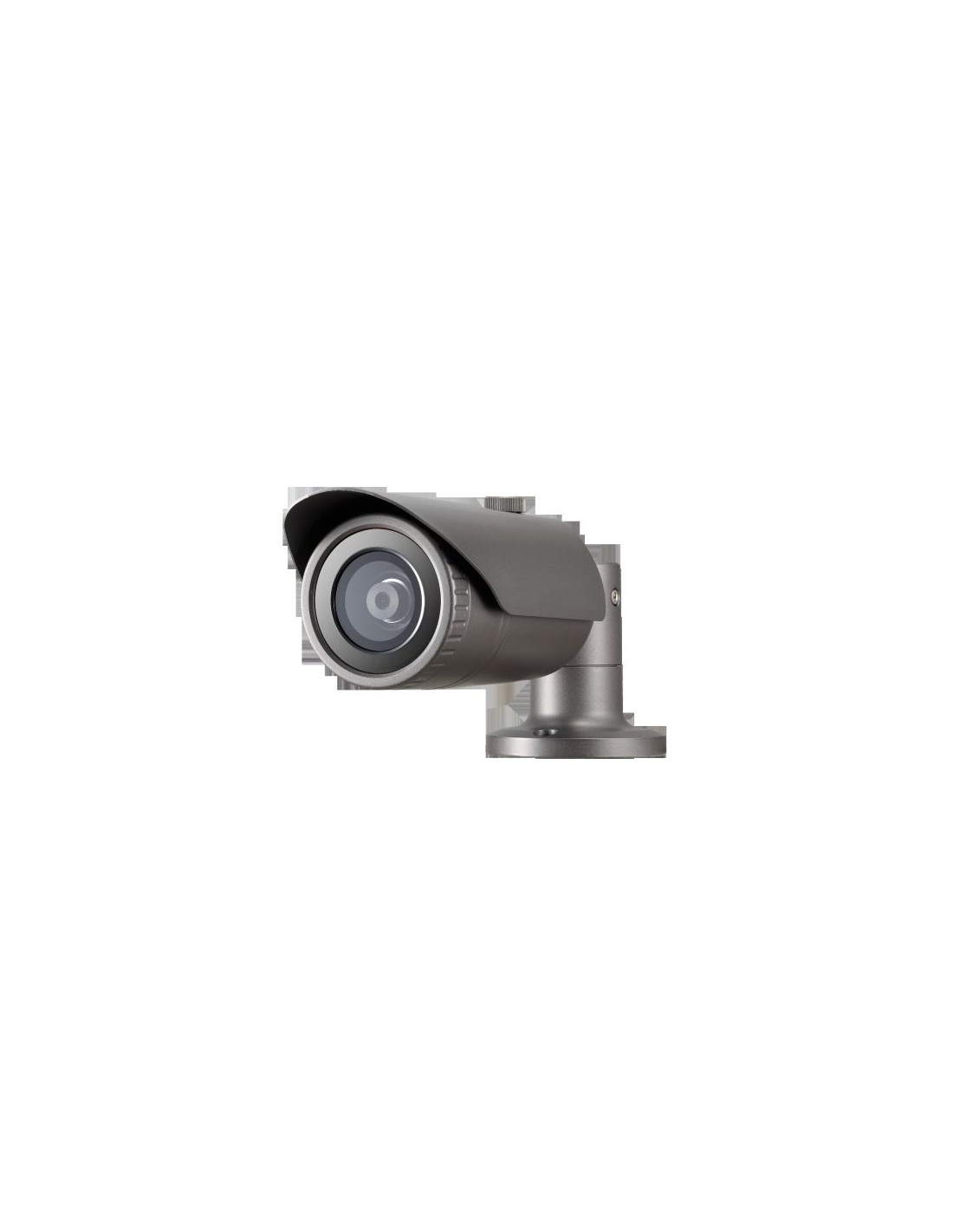

QNO-6012R1: IR 30 m. WDR 120dB. Óptica fija 2.8mm (Sin Audio)

Referencia QNO-6012R1

Resolución máx. de 2 megapíxeles (1920 x 1080)
0,1 lux (Color), 0 Lux (B/N, LED IR encendido)
Lente fija de 2,8 mm / 4 mm / 6 mm
Máx. 30 ips a 2 MP en todas las resoluciones (H.265 / H.264)
Compatible con los códecs H.265, H.264 y MJPEG, y flujos de datos múltiples
Detección de movimiento, manipulación y detección de desenfoque
Visualización pasillo (90˚/270˚), admite LDC
Ranura para tarjetas de memoria SD, SDHC y SDXC (máx. 128 GB)
Longitud visible IR 20 m / 25 m / 30 m
IP66, IK10, PoE y 12 VCC

Descripción

ESPECIFICACIONES TÉCNICAS

Especificaciones técnicas

Video
Imaging Device																																																																1/2.8" 2MP CMOS
Resolution																																																																1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
Max. Framerate																																																																H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz)
NETD																																																																None
Pixel Size																																																																None
Min. Illumination																																																																Color: 0.03Lux(F2.0, 1/30sec) BW: 0Lux(IR LED on)
Video Out																																																																CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
Video Transmission Distance																																																																None
Lens
Focal Length (Zoom Ratio)																																																																2.8mm fixed focal
Max. Aperture Ratio																																																																F2.0
Angular Field of View																																																																H: 113.7 / V: 61.5° / D: 134.5°
Min. Object Distance																																																																0.5m (1.64ft)
Focus Control																																																																Fixed
Lens Type																																																																None
Mount Type																																																																None
Optional Lens																																																																None
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range																																																																None
Pan Range																																																																None
Pan Speed																																																																None
Tilt Range																																																																None
Tilt Speed																																																																None
Rotate Range																																																																None
Sequence																																																																None
Preset Accuracy																																																																None
Operational
Camera Title																																																																Displayed up to 85 characters
Direction Indicator																																																																None
Day & Night																																																																Auto(ICR)
Backlight Compensation																																																																BLC, WDR, SSDR
Wide Dynamic Range																																																																120dB
Digital Noise Reduction																																																																SSNR
Digital Image Stabilization																																																																None
Defog																																																																None
Motion Detection																																																																4ea, polygonal zones
Privacy Masking																																																																6ea, rectangular zones
Gain Control																																																																Low / Middle / High
White Balance																																																																ATW / AWC / Manual / Indoor / Outdoor
LDC																																																																Support
Electronic Shutter Speed																																																																Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
Digital PTZ																																																																None
Video Rotation																																																																Flip, Mirror, Hallway view(90˚/270˚)
Analytics																																																																Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
Business Intelligence																																																																None
Serial Interface																																																																None
Alarm I/O																																																																Input 1ea / Output 1ea
Alarm Triggers																																																																Analytics, Network disconnect, Alarm input
Alarm Events																																																																File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output
Audio In																																																																None
Audio Out																																																																None
IR Viewable Length																																																																20m(65.62ft)
IR Illuminator (Optional)																																																																None
Water Removal																																																																None
Auto Tracking																																																																None
Coaxial Protocol																																																																None
Color Palettes																																																																None
Radiometry
Temperature Detect Range																																																																None
Temperature Accuracy																																																																None
Temperature Detection																																																																None
Additional																																																																None
Network
Ethernet																																																																RJ-45(10/100BASE-T)
Video Compression																																																																H.265/H.264: Main/High, MJPEG
Audio Compression																																																																None
Smart Codec																																																																WiseStreamⅡ
Video Quality Adjustment																																																																H.264/H.265: Target bitrate level control MJPEG: Quality Level control
Bitrate Control																																																																H.264/H.265: CBR or VBR MJPEG: VBR
Streaming																																																																Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles)
Protocol																																																																IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
Security																																																																HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface																																																																ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
General
Webpage Language																																																																English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch
Web Viewer																																																																None
Edge Storage																																																																Micro SD/SDHC/SDXC 1slot 128GB
Memory																																																																512MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity																																																																-30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -20°C
Storage Temperature / Humidity																																																																-30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH
Certification																																																																IP66, IK10
Input Voltage																																																																PoE(IEEE802.3af, Class3), 12VDC
Power Consumption																																																																PoE: Max 7.00W, typical 5.20W 12VDC: Max 6.10W, typical 4.50W
Mechanical
Color / Material																																																																Dark grey / Aluminum
RAL Code																																																																None
Product Dimensions / Weight																																																																Ø70.0x246.0mm(Ø2.76x9.69"), 700g(1.54 Ib)
Compatible Conduit hole / Gangbox																																																																Single, Double, 4" Octagon
Hanging Mount (Dome)																																																																None
Skin Cover (Dome)																																																																None
Weather Cap (Dome)																																																																None
Power Module																																																																None
Backbox																																																																SBO-100B1
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF)																																																																25.1m(82.21ft)
Observe (63PPM/ 19PPF)																																																																10.0m(32.89ft)
Recognize (125PPM/ 38PPF)																																																																5.0m(16.44ft)
Identify (250PPM/ 76PPF)																																																																2.5m(8.22ft)
