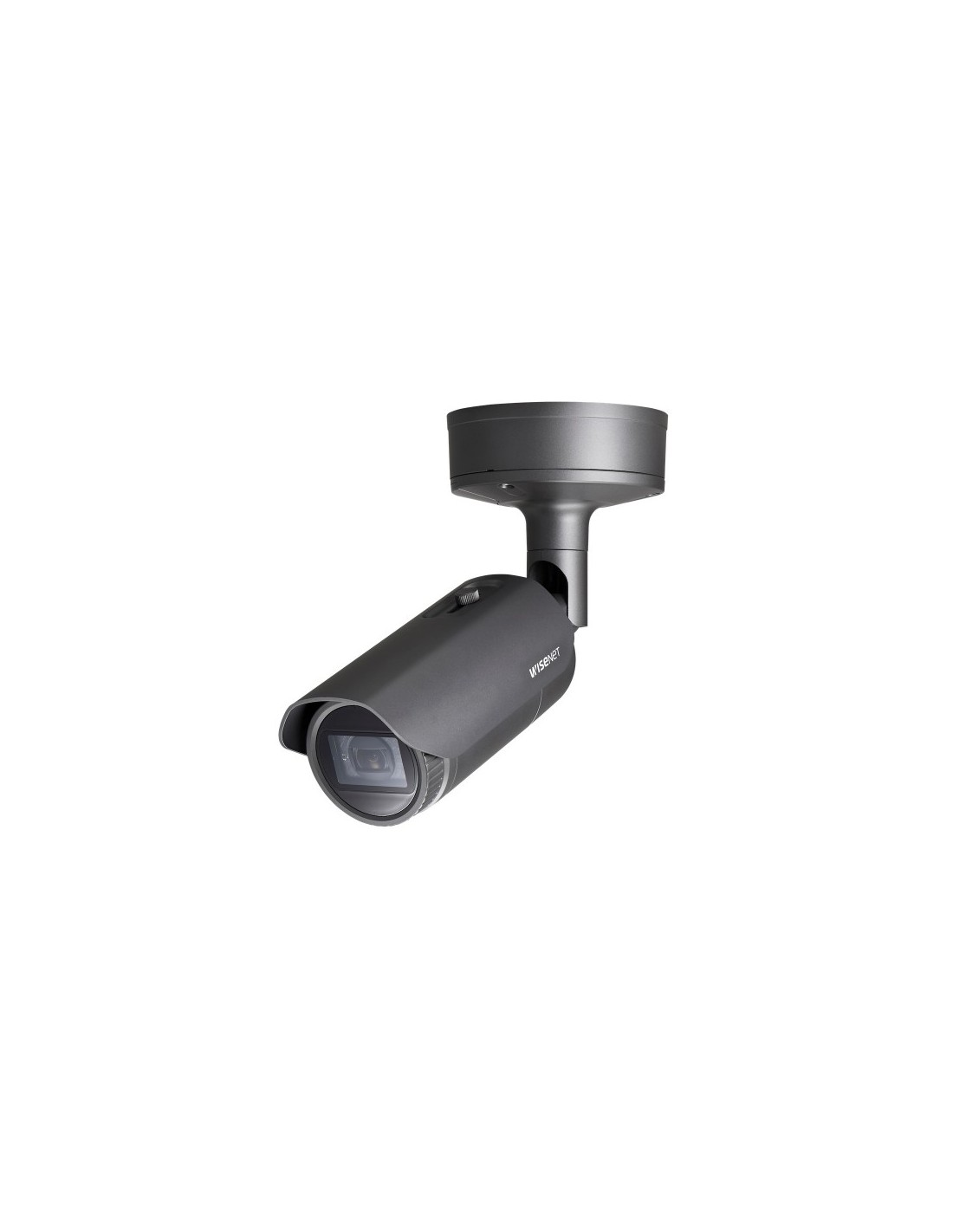

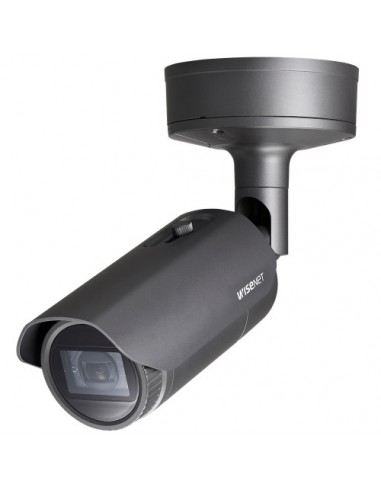

PNO-A6081R: IR 40 m. WDR 120dB. Zoom motorizado 4.38 - 9.33mm

Referencia PNO-A6081R

Resolución máxima de 2MP, hasta 120 fps
0.007Lux@F1.3, 1/30 seg. (Color), 0Lux (B/N, LED IR encendido)
Visión día y noche (ICR), WDR (120 dB), WiseNR II (mediante motor de IA)
Compatibilidad con H.265, H.264, MJPEG, WiseStream II, WiseStream III (mediante motor de IA)
Análisis de video basado en IA: detección y clasificación de objetos (persona, rostro, vehículo, matrícula) – detección de mascarilla facial, detección de distanciamiento social – atributos, BestShot TPM con FIPS 140-2 nivel 2, arranque seguro, verificación de integridad del firmware
Compatibilidad con sistemas: SSM v2.10.8 o superior, plugin Genetec v1.0 o superior, plugin Milestone v1.0.2 o superior, modelo NVR (XRN-6410DB4/B4, XRN-3210B4)
Clasificaciones de protección: IP66, IP67, IK10, NEMA4X

Descripción

ESPECIFICACIONES TÉCNICAS

Especificaciones técnicas

Video
Imaging Device																																																																1/2" CMOS
Resolution																																																																1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
Max. Framerate																																																																H.265/H.264: Max. 60/50fps(60Hz/50Hz, AI analytics on), Max. 120/100fps(60Hz/50Hz, AI analytics off) MJPEG: Max. 15fps/12fps(60Hz/50Hz)
NETD																																																																None
Pixel Size																																																																None
Min. Illumination																																																																Color: 0.007Lux(F1.3, 1/30sec, 30IRE) B/W : 0.0007Lux(F1.3, 1/30sec, 30IRE), 0Lux(IR LED on), 30/25fps Color: 0.014Lux(F1.3, 1/60sec, 30IRE) B/W : 0.0014Lux(F1.3, 1/60sec, 30IRE), 0Lux(IR LED on), 60/50fps Color: 0.028Lux(F1.3, 1/120sec,30IRE) B/W : 0.0028Lux(F1.3, 1/120sec, 30IRE), 0Lux(IR LED on), 120/100fps
Video Out																																																																CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation
Video Transmission Distance																																																																None
Lens
Focal Length (Zoom Ratio)																																																																4.38~9.33mm(2.13x) motorized varifocal
Max. Aperture Ratio																																																																F1.3(Wide)~F2.15(Tele)
Angular Field of View																																																																H:103.1°(Wide)~44.5°(Tele) / V:54.2°(Wide)~24.9°(Tele) / D:124°(Wide)~51.1°(Tele)
Min. Object Distance																																																																0.5m(1.64ft)
Focus Control																																																																Simple focus
Lens Type																																																																P iris
Mount Type																																																																None
Optional Lens																																																																None
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range																																																																None
Pan Range																																																																None
Pan Speed																																																																None
Tilt Range																																																																None
Tilt Speed																																																																None
Rotate Range																																																																None
Sequence																																																																None
Preset Accuracy																																																																None
Operational
Camera Title																																																																Displayed up to 85 characters
Direction Indicator																																																																None
Day & Night																																																																Auto(ICR)
Backlight Compensation																																																																BLC, WDR, SSDR
Wide Dynamic Range																																																																120dB
Digital Noise Reduction																																																																SSNR, WiseNR Ⅱ(using AI engine)
Digital Image Stabilization																																																																Stabilization Support(built-in gyro sensor)
Defog																																																																None
Motion Detection																																																																8ea, polygonal zones
Privacy Masking																																																																6ea, rectangle zones - Color: Gray/Green/Red/Blue/Black/White
Gain Control																																																																Low / Middle / High
White Balance																																																																ATW / AWC / Manual / Indoor / Outdoor
LDC																																																																Support
Electronic Shutter Speed																																																																Minimum / Maximum / Anti flicker (1/5~1/12,000sec) Auto prefer shutter control based on AI engine
Digital PTZ																																																																None
Video Rotation																																																																Flip, Mirror, Hallway view(90˚/270˚)
Analytics																																																																Classified object type : Person/Face/Vehicle/License plate Attributes : Person(Gender, Color and Bag), Face(Age, Gender, Mask and Glasses), Vehicle(Type:car/bus/truck/motorcycle/bicycle and Color) Support Bestshot per object Analytics events based on AI engine - Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Face mask detection, Digital auto tracking, Social distancing detection Analytics events - Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear) *Some of the video analytics only works with people and vehicle detection
Business Intelligence																																																																People counting, Queue management, Heatmap based on AI engine
Serial Interface																																																																None
Alarm I/O																																																																2 configurable I/O ports, DC 12V output(Max. 50mA)
Alarm Triggers																																																																Analytics, Network disconnect, Alarm input
Alarm Events																																																																File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover Audio playback
Audio In																																																																Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out																																																																Line out, Max.output level: 1Vrms
IR Viewable Length																																																																40m(131.23ft), Wise IR
IR Illuminator (Optional)																																																																None
Water Removal																																																																None
Auto Tracking																																																																None
Coaxial Protocol																																																																None
Color Palettes																																																																None
Radiometry
Temperature detect range																																																																None
Temperature accuracy																																																																None
Temperature detection																																																																None
Additional																																																																None
Network
Ethernet																																																																Metal shielded RJ-45(10/100/1000 BASE-T)
Video Compression																																																																H.265/H.264: Main/High, MJPEG
Audio Compression																																																																G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
Smart Codec																																																																Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(using AI engine)
Video Quality Adjustment																																																																H.264/H.265: Target bitrate level control MJPEG: Target bitrate level control
Bitrate Control																																																																H.264/H.265: CBR or VBR MJPEG: VBR
Streaming																																																																Unicast(6 users) / Multicast Multiple streaming(Up to 5 profiles)
Protocol																																																																IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
Security																																																																HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device Certificate(Hanwha Techwin Root CA) TPM with FIPS 140-2 level2 Secure boot, Verify firmware forgery
Application Programming Interface																																																																ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
General
Webpage Language																																																																English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Web Viewer																																																																None
Edge Storage																																																																Micro SD/SDHC/SDXC 2slots 512GB
Memory																																																																4096MB RAM, 512MB Flash
Environmental & Electrical
Operating Temperature / Humidity																																																																-50°C ~ +55°C(-58°F ~ +131°F) / Less than 90% RH * Start up should be done at above -30°C
Storage Temperature / Humidity																																																																-50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
Certification																																																																IP66/IP67, IK10, NEMA4X
Input Voltage																																																																PoE+(IEEE802.3at), 12VDC
Power Consumption																																																																PoE+: Max 19.50W, typical 16.00W 12VDC: Max 17.00W, typical 13.50W
Mechanical
Color / Material																																																																Dark gray / Aluminum, Hard-coated window
RAL Code																																																																None
Product dimensions / weight																																																																Ø91.0x368.6mm (3.58" x 14.51") (Without sunshield), Weight : 2.48Kg (5.47lb)
Compatible Conduit hole / Gangbox																																																																None
Hanging mount(Dome)																																																																None
Skin cover(Dome)																																																																None
Weather cap(Dome)																																																																None
Power module																																																																None
Backbox																																																																None
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF)																																																																Wide: 30.5m(100.03ft) / Tele: 93.9m(307.95ft)
Observe (63PPM/ 19PPF)																																																																Wide: 12.2m(40.01ft) / Tele: 37.5m(123.18ft)
Recognize (125PPM/ 38PPF)																																																																Wide: 6.1m(20.01ft) / Tele: 18.8m(61.59ft)
Identify (250PPM/ 76PPF)																																																																Wide: 3.0m(10.00ft) / Tele: 9.4m(30.79ft)
